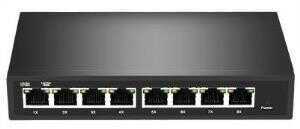

ENTEGRON TS8208PENTG 8 Port 1000Mbps

Network Ethernet Gigabit PoE Switch

Overview:

 8 Port Gigabit Desktop Switch with 8-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.

 8 Auto-Negotiation RJ45 ports (port-1 to port-8) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.



Easy To Use:

TS8208PENTG is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality,

The TS8208PENTG 8-Port Gigabit Desktop Switch with 8-Port PoE is a great selection for expanding your home or office network.



Key Features:

Supports PoE power up to 30W for each PoE port Supports PoE power up to 120W for all PoE ports Supports PoE IEEE 802.3af/at compliant PDs

Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode 4K entry MAC address table of the TS8208PENTG with auto-learning and auto-aging External power adapter supply.



Hardware Features:

Interface	8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
Fan Quantity	Fan Quantity
External Power Supply	External Power Adapter(Output: 48VDC / 2.5A)
PoE Ports (RJ45)	Standard: 802.3 af compliant  PoE Ports: Port1- Port 8  Power Supply: 120W
Backbound Bandwidth	16Gbps
Mac Address Table	4K
Dimensions ( W x D x H )	(190*96*27 mm)
SOFTWARE FEATURES Transmission Method	Compatible With IEEE 802.3af Compliant PDs Priority Function  Mac Address Auto-Learning And Auto-Aging EEE802.3x Flow Control 802.1p/DSCP QoS
Certification	CE, FCC, RoHS
Package Contents	TS8208PENTG, Power Adapter, Installation Guide
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
