Overview

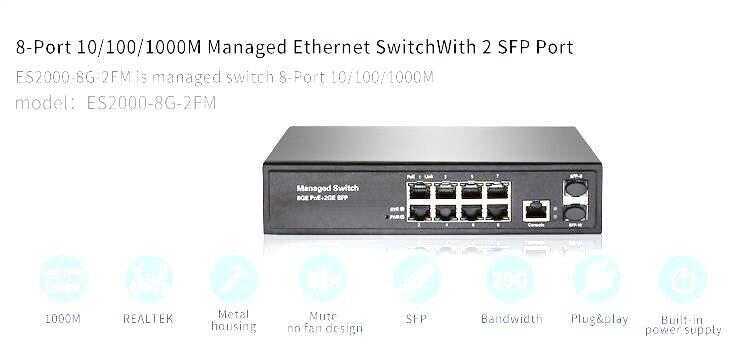

ES2000ENTG8G-2FM is a fully Gigabit two layer network management switch designed and developed solely for the purpose of building high-performance gigabit network requirements. Entegron,8 full Gigabit RJ45 ports and 2 separate Gigabit SFP (Mini GBIC), Provide a comprehensive security protection system, Perfect QoS strategy and rich VLAN function,Management and maintenance are simple and can be applied to small and medium enterprises, Core layer of community and school.

Full Gigabit access



Comprehensive safety protection system



Powerful VLAN capabilities

IEEE, 802.1Q, VLAN



Rich QoS strategy



3 priority modes based on port, IEEE802.1p and DSCP



Multilevel access control policy



Reliability design



STP/RSTP/MSTP two layer link protection technology, IGMP Snooping technology



Secure network management and maintenance



CLI command line (Console, Telnet), Web network, SNMP (V1/V2c/V3, SSH (V1/V2) and other management methods

Specifications



Model	ES2000ENTG8G-2FM
Product	8G+2SFP Full Gigabit Managed Ethernet Switch
Fixed port	8*10/100/1000Base-TX                              2*100/1000M SFP
Console port	1*console port
Reset Key	1
CPU	500M
DDR	1G DDR3 1333MHz
Buffer	Fully integrated 4.1M packet buffer
FLASH	16M
RAM	128M
Bandwidth	20/56Gbps
Packet Forwarding	14.44Mpps
MAC Address	8K
Network Protocol	IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3ad IEEE 802.3q 、IEEE 802.3q/p IEEE 802.1w、IEEE 802.1d 、IEEE 802.1S STP(Spanning Tree Protocol) RSTP/MSTP( Rapid Spanning Tree Protocol) EPPS ring network protocol EAPS ring network protocol
Port Specification	10/100/1000BaseT（X）Auto
Transmission Mode	Store and Forward(full wirespeed)
Transmission Distance	10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(≤100 meter) 1000BASE-TX ： Cat6 or later UTP(≤1000 meter)
LED Indicator	PWR:Power LED SYS:(System LED) Port:(Green=100M LED+Orange=1000M LED）
Power	Built-in power AC 100~240V 50/60HZ MAX Current 0.2A MAX Power 15W
Operating Temperature/Humidity	:-20～+55°C；5%～90% RH Non coagulation
Storage Temperature/Humidity	:-40～+75°C；5%～95% RH Non coagulation
Product size/Packing size（L*W*H）	210mm*140mm*45mm 270mm*220mm*70mm
N.W/G.W（kg）	1.1kg/1.4kg
Installation	Desktop(optional wall and machine hanger parts)
Lightning protection level	3KV 8/20us； IP30
Certificate	CE mark, commercial；CE/LVD EN60950； FCC Part 15 Class B；RoHS；
Warranty	Whole device for 1 year(Accessories not included)
Software Parameter	The following are the main software functions, not all, if there is no function, please consult us first! / Support software development with customized requirements!
Protocol Standard	IEEE 802.3x, IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z, IEEE 802.3ad, IEEE 802.3q、IEEE 802.3q/p, IEEE 802.1w、IEEE 802.1d、IEEE 802.1S、IEEE 802.1X
MAC Address	Support 16K MAC addresses; MAC address learning and aging
VLAN	Port-based VLANs Up to 4096 VLAN support Voice VLAN,can configure QoS for voice data 802.1Q VLAN
Spanning Tree	STP(Spanning tree protocol) RSTP(Rapid spanning tree protocol) MSTP(Rapid spanning tree protocol) EPPS(Ring network protocol) EAPS(Ring network protocol) 802.1x argumentation agreement
Link Aggregation	Max 8 aggregation groups TRUNK,each supports 8 ports
Port Mirror	Many-to-one port mirroring
Loop Guard	Loop protection function, real-time detection, rapid alarm, accurate positioning,intelligent blocking,automatic recovery
Port Isolation	Support downlink ports isolated from each other and communicate with uplink port
Port Flow Control	Half duplex based back pressure control Full duplex based on PAUSE frame
IGMP Snooping	IGMPv1/2/3 and MLDv1/2 GMRP Protocol Registration Multicast address management, multicast VLAN,multicast routing ports,static multicast addresses
DHCP	DHCP Snooping
Storm Suppression	Unknown unicast, multicast,unknown multicast,storm suppression of broadcast type Storm suppression based on bandwidth tuning and storm filtering
Security	User port+ IP Address+ MAC Address ACL based on IP and MAC Security properties of port based MAC address quantities
QOS	802.1p port queue priority algorithm Cos/Tos，QOS sign WRR (Weighted Round Robin)，Weighted priority rotation algorithm WRR、SP、WFQ，3 priority scheduling models
Cable Sequence	Auto-MDIX; auto identification of straight-through cables and crossover cables
Negotiation Mode	Port supports automatic negotiation ( self-negotiation transmission rate and duplex mode)
