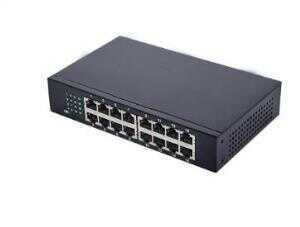

ENTEGRON 16 PORT 10/100 SWITCH Metal Kasa
ENTEGRON ENTDS100-16F
16 Port 10/100Mbps
Fast Ethernet Switch Hub
Overview:
ES100ENTG16F is an independently developed two-layer full-gigabit Entegron Ethernet switch product, providing 16* 10/100m RJ45 ports, with each port line speed forwarding capability. This series of switch provides different working modes for security monitoring, non-disk startup and wireless networking, and has good network adaptability
Key Features:
1)Comply with IEEE 802.3 10BASE-T, 802.3u 100BASE-TX standard.
2) All ports support 10M full/half duplex mode, 100M full/half duplex mode,
3) Three working modes: Provide mode-conversation switch, with three working modes of "standard exchange", "VLAN isolation", "network clone".
4) Each port support MDI/MDIX automatic rollover and half-duplex/rate self-negotiation.
5) Support IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control.
6) Panel board’s indicator monitors working conditions and helps diagnose faults.
7) Store and forward switching to ensure data integrity and speed matching.
8) 8K MAC address table.
Specifications:
Product name
10/100M 16 Port Entegron Ethernet Switch
Model No
ES100ENTG16F
Standard
IEEE 802.3 10BASE-T, 802.3u 100BASE-TX
Protocol
CSMA/CD Ethernet
Transmission rate
10M full duplex, 20M half duplex, 100M full duplex, 200M half duplex,
Physical medium
10Base-T: 2 pairs of Cat.3/4/5 UTP (≤100m) EIA/TIA-568 100Ω STP (≤100m) 100Base-TX: 2/4 pairs of Cat.5 UTP (≤100m) EIA/TIA-568 100Ω STP (≤100m)
LED indicator
POWER, LINK/ACT, 100M
Transmission mode
Storage and forward, 8K MAC address
Forward rate
10Base-T: 14881pps, 100Base-TX: 148810pps,
System mode
Standard Exchange, VLAN Isolation, Network Clone Storage Temperature:-40°C~70°C(-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Key Features:
| Product name | 10/100M 16 Port Entegron Ethernet Switch |
| Model No | ES100ENTG16F |
| Standard | IEEE 802.3 10BASE-T, 802.3u 100BASE-TX |
| Protocol | CSMA/CD Ethernet |
| Transmission rate | 10M full duplex, 20M half duplex, 100M full duplex, 200M half duplex, |
| Physical medium | 10Base-T: 2 pairs of Cat.3/4/5 UTP (≤100m) EIA/TIA-568 100Ω STP (≤100m) 100Base-TX: 2/4 pairs of Cat.5 UTP (≤100m) EIA/TIA-568 100Ω STP (≤100m) |
| LED indicator | POWER, LINK/ACT, 100M |
| Transmission mode | Storage and forward, 8K MAC address |
| Forward rate | 10Base-T: 14881pps, 100Base-TX: 148810pps, |
| System mode | Standard Exchange, VLAN Isolation, Network Clone Storage Temperature:-40°C~70°C(-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
