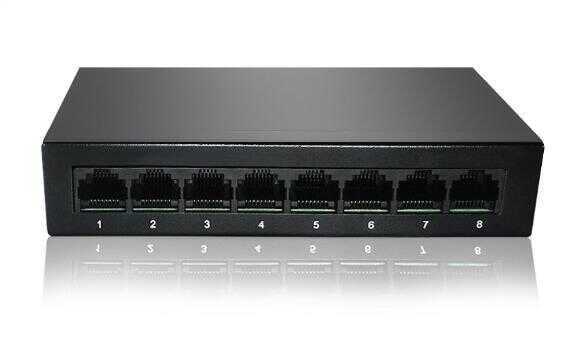

Entegron 8-Port Gigabit unmanaged Switch, 8 Gigabit METAL KASA
ENTEGRON ES1000ENTG8G
8 Port 10/100/1000M
Network Switch
Overview:
This item is 8 port 10/100/1000Mbps unmanaged switch, offer 8 port 10/100/1000Mbps auto negotiation port, high integration design, small and exquisite, portable, suit for medium and small office and home network. Using storeand-forward technology, combined with dynamic memory allocation, ensure allocate to each port effectively. Its wirespeed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.
Key Features:
· Complies with IEEE 802.3, IEEE 802.3u standards
· 8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
· Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
· Supports MAC address auto-learning and auto-aging
· LED indicators for monitoring power, link, activity
· Plastic case, desktop
· External Power Adapter supply
· Desktop or wall-mounting design
· Plug and Play design simplifies installation
Specifications:
Product Model
ES1000ENTG8G
Chipset
RTL8370N
Standards
IEEE802.3 10Base-T,IEEE802.3u 100Base-TX
Network Media(Cable)
10 Base-T:UTP catagory 3,4,5 cable(maximum 100m), EIA/TIA-568 100U STP(maximum 100m),100Base-Tx, UTP catagory 5,5e cable(maximum 10m),EIA/TIA-568 100U STP (maximum 100m)
Switching Capacity
16G
MAC Address Learning
Automatically learning,automatically Update
Number of ports
8x 10/100/1000Mbps Auto-Negotiation ports
LED 10/100/1000 Indicators Other
Link/Actor Power
Dimension
140MM*80MM*25MM
Environment
Operating Temperature:0°C~40°C(32°F~104°F) Storage Temperature:-40°C~70°C(-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
